Cards - How to use Jira

<< || Filters < || Projects >

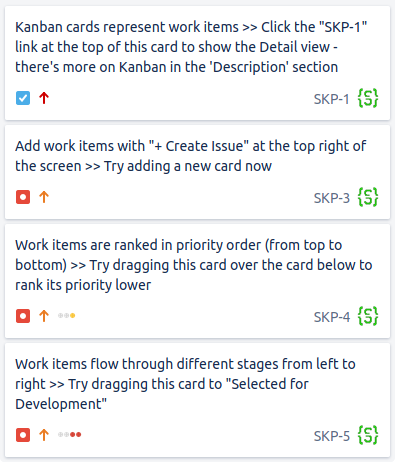

Each issue is represented as an object with properties. More specifically, these objects are called 'cards'.

./img/kanban-cards.png

Properties

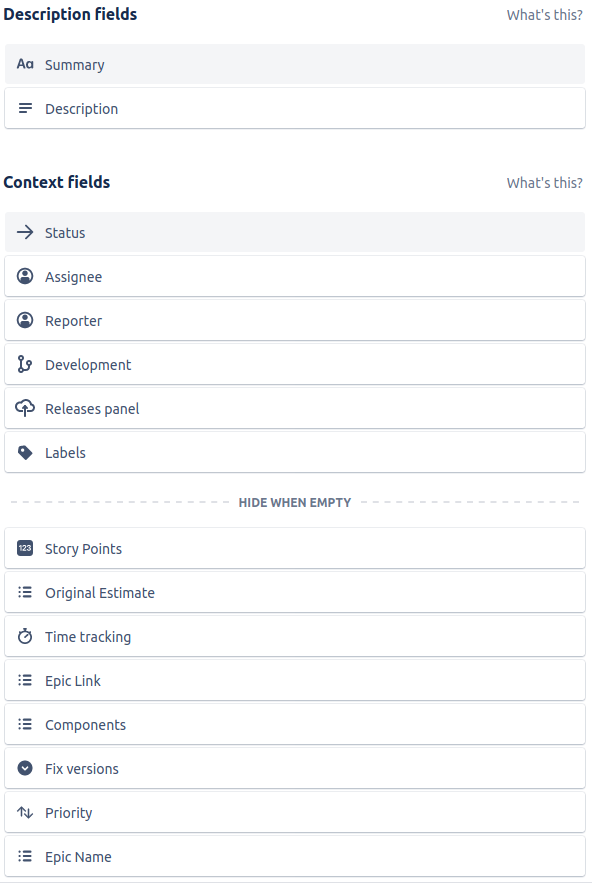

Each card has the following properties:

./img/fields-cards.png

Creating

To create a card yourself, you need to press the Create button on the top bar.

./img/create-header.png

Viewing

All cards (issues) can be viewed from a project's side menu, under 'Issues'.

./img/issues-sidebar.png

Of course, they can also be viewed through filters and a project's board.

How to use

By default, opening a card presents, at the top, it's key (think of it as an ID),

./img/card-key.png

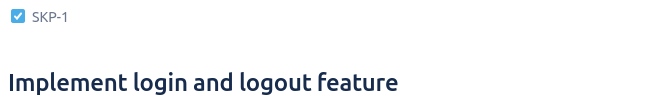

it's summary below it,

./img/card-summary.png

options for adding attachments, subtasks, linking issues and adding more apps (think of apps like extensions),

./img/card-attach-subtask.png

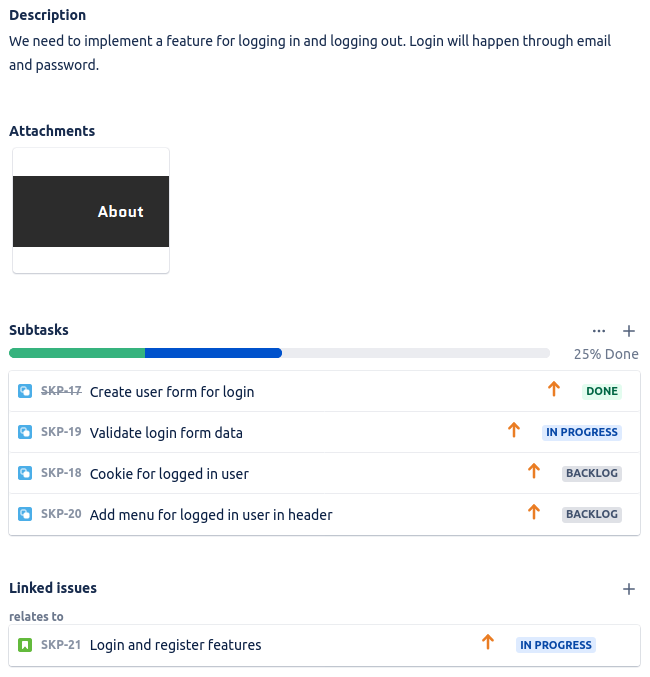

following are the description, actual attachments, subtasks, linked issues, etc.,

./img/desc-att-sub-link.png

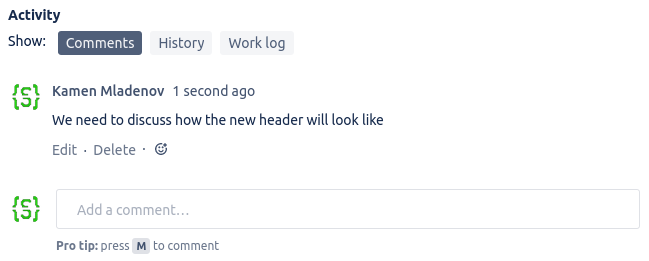

and at the bottom you have the activity, consisting of comments on the issue,

./img/activity-comments.png

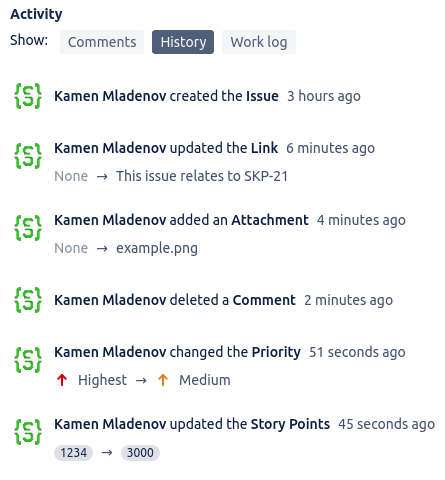

history of things that have happened to that issue,

./img/activity-history.png

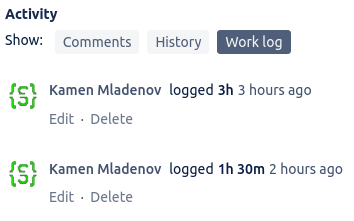

and work logs (a bit later we talk about them in more detail).

./img/activity-work-log.png

Right side

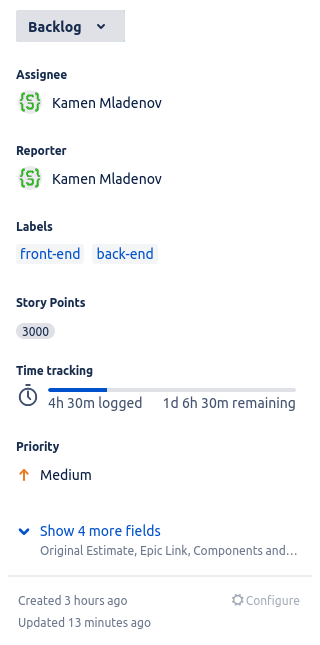

To the right side, you have all of the different properties (some fields without a value will be hidden).

./img/card-right-side.png

On the top right you can change watch options (watching an issue means you get notified by all changes done to it), you can share the card and do actions (the three dots).

./img/card-top-right.png

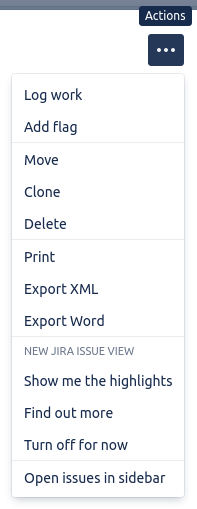

Actions are things you can do to the whole card, like moving or deleting it.

./img/card-actions.png

The most notable options are Log work and Add flag.

Work log

In Jira, you can estimate how long an issue will take for it to be resolved. This is done through logging work.

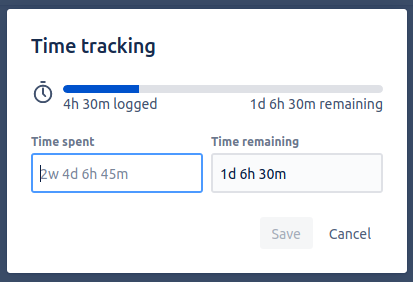

In the Log work screen, you'll be met with a Time spent and Time remaining fields, that you'll need to fill with the appropriate information.

./img/time-tracking.png

The time remaining takes a default value from the previous time log, so you don't need to specify it every time.

Issue flagging

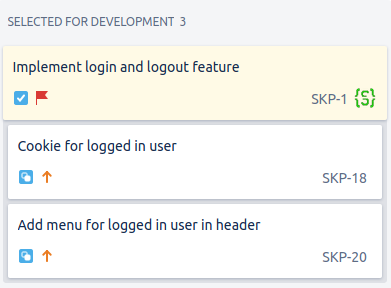

A flagged issue is an issue that is very important. Flagged issues are displayed in yellow to signify their needed attention.

./img/flagged-card.png

Basic issue information

On the bottom right you can see when the issue was created and when it was last updated. You can also access the field configuration menu from the Configure button. It won't be covered in this tutorial, you can read about it here.

./img/time-and-configure.png
